按上一篇绘制自定义QSpinBox的过程，再来绘制一个QSpinBox。

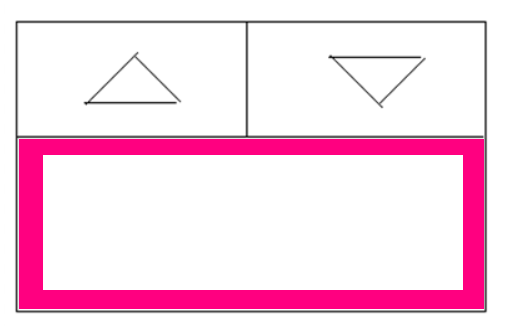

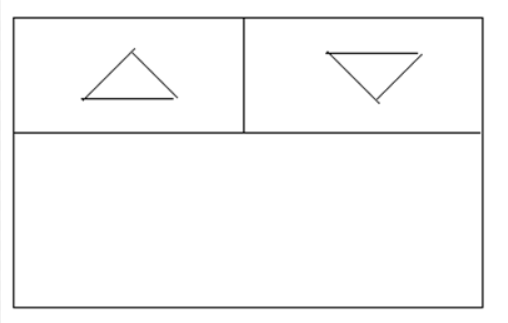

设计图：

 把按钮放上面

在这之前先看一下成品：

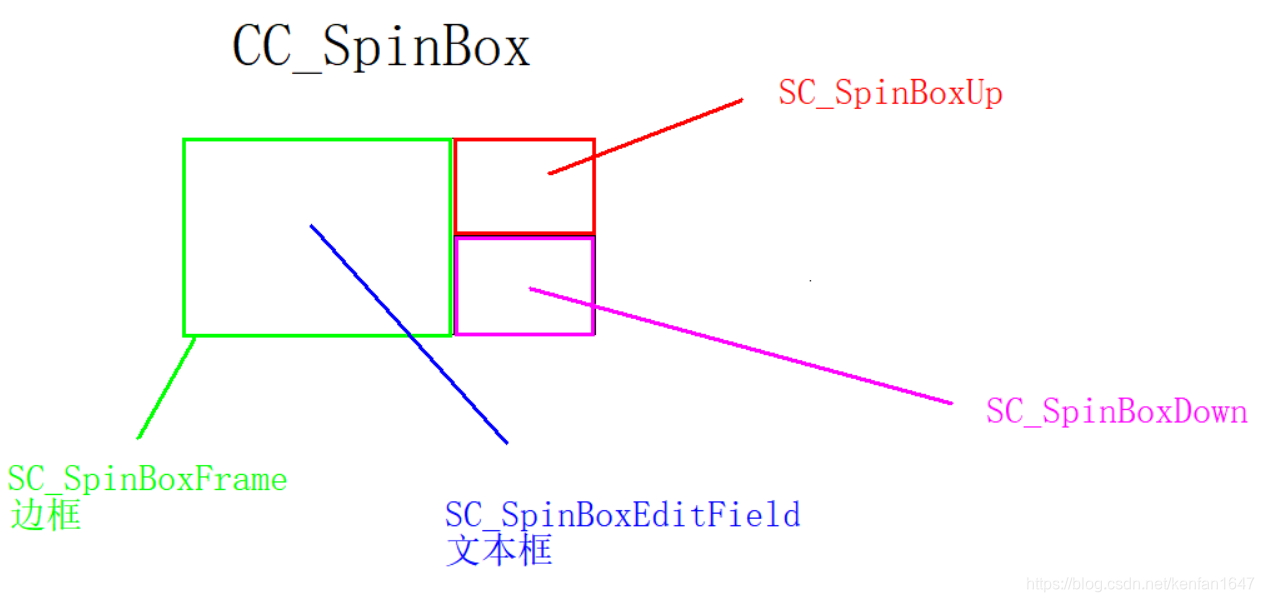

 上一篇说了，绘制自定义QSpinBox实际上就是给QSpinBox中的这些原始组成元素指定好位置并绘制出来。

设计这些元素的尺寸如下：

即确定子控件位置的subControlRect()函数：

QRect mySpinboxStyle::subControlRect(ComplexControl whichControl,const QStyleOptionComplex *option,SubControl whichSubControl,const QWidget *widget) const{    if (whichControl == CC_SpinBox)    {        switch (whichSubControl)        {            case SC_SpinBoxFrame:                return option->rect;            case SC_SpinBoxEditField:                return QRect(option->rect.x(), option->rect.height() * 0.4 , option->rect.width(), option->rect.height() * 0.6).adjusted(+10, +10, -10, -10);            case SC_SpinBoxDown:                return QRect(option->rect.width()/2,0,option->rect.width()/2,option->rect.height()*0.4);            case SC_SpinBoxUp:                return QRect(0,0,option->rect.width()/2,option->rect.height()*0.4);            default:                return QRect();        }    }    else    {        return QProxyStyle::subControlRect(whichControl, option,whichSubControl, widget);    }}

然后开始绘制：

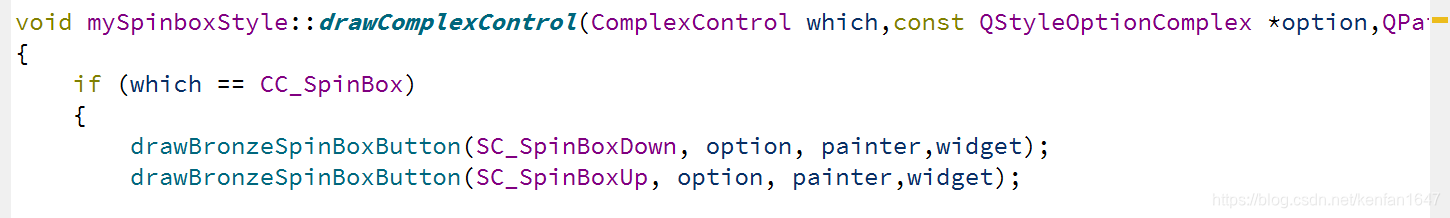

绘制从drawComplexControl()函数开始，首先绘制上下按钮

void mySpinboxStyle::drawBronzeSpinBoxButton(SubControl which, const QStyleOptionComplex *option,QPainter *painter,const QWidget * widget) const{    PrimitiveElement element;    QRect buttonRect = option->rect;    if (which == SC_SpinBoxUp)//上按钮    {        buttonRect.translate(0, 0);//translate矩形移到指定位置        element = PE_IndicatorSpinPlus;    }    else if(which == SC_SpinBoxDown)    {        buttonRect.translate(buttonRect.width() / 2, 0);        element = PE_IndicatorSpinMinus;    }    buttonRect.setWidth(buttonRect.width() / 2);    buttonRect.setHeight(buttonRect.width() * 0.4);    QStyleOption buttonOpt(*option);    buttonOpt.rect = buttonRect;    //绘制背景开始    painter->save();    painter->setClipRect(buttonRect);//在此范围内绘制背景    if (option->activeSubControls != which)//不是当前活动的子控件    {        buttonOpt.state &= ~(State_MouseOver/*在鼠标下面*/ | State_On/*按下*/ | State_Sunken/*凹陷*/);    }    QLinearGradient gradient(0, 0, 0, buttonOpt.rect.height());//y轴使用渐变    gradient.setColorAt(0.0, QColor("#5ee7df"));    gradient.setColorAt(1.0, QColor("#b490ca"));    painter->setPen(Qt::NoPen);    painter->setBrush(gradient);    QRect roundRect = buttonOpt.rect.adjusted(+1, +1, -1, -1);    int diameter = 12;    int cx = 100 * diameter / buttonOpt.rect.width();    int cy = 100 * diameter / buttonOpt.rect.height();    painter->drawRoundRect(roundRect, cx, cy);//绘制圆角矩形    if (buttonOpt.state & (State_On | State_Sunken))//按下时，绘制一层暗色    {        QColor slightlyOpaqueBlack(0, 0, 0, 63);        painter->setBrush(slightlyOpaqueBlack);        painter->drawRoundRect(roundRect, cx, cy);//绘制圆角矩形    }    //绘制背景结束    painter->restore();    //绘制图标    QStyleOption arrowOpt(buttonOpt);    QRect subRect = subControlRect(CC_SpinBox, option, which);    arrowOpt.rect = subRect.adjusted(+subRect.width() * 0.3, +subRect.height() * 0.3,                                     -subRect.width() * 0.3, -subRect.height() * 0.3);    drawPrimitive(element, &arrowOpt, painter);}

这个函数用来绘制上下按钮的背景和按钮上面的图标

背景使用了线性渐变，如果没有好的渐变配色方案可以参考这里：

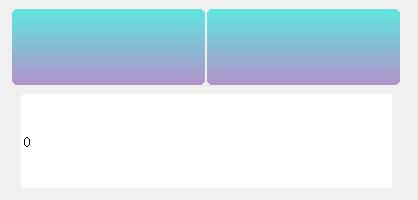

这里绘制的时候使用了adjusted(+1, +1, -1, -1)，即给四周留下了一点空间显得不拥挤。绘制完上下按钮的背景时的效果：

然后是绘制按钮的图标，

QRect subRect = subControlRect(CC_SpinBox, option, which);    arrowOpt.rect = subRect.adjusted(+subRect.width() * 0.3, +subRect.height() * 0.3,                                     -subRect.width() * 0.3, -subRect.height() * 0.3);

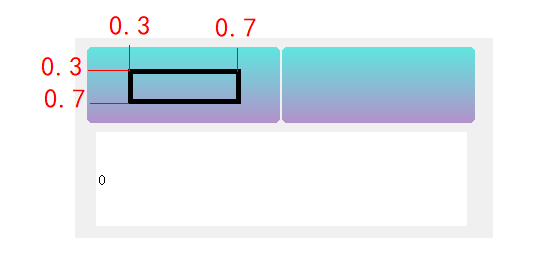

这里从subControlRect()获取上下按钮的范围之后再次压缩了范围

在此范围内绘制图标

这里设置了上下按钮分别使用PE_IndicatorSpinPlus / PE_IndicatorSpinMinus，默认是代表加减号的意思。

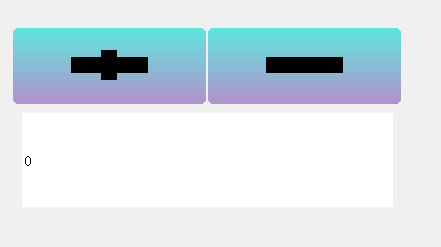

如果使用默认设置，在drawPrimitive()中直接调用 QProxyStyle::drawPrimitive(which, option, painter, widget);效果：

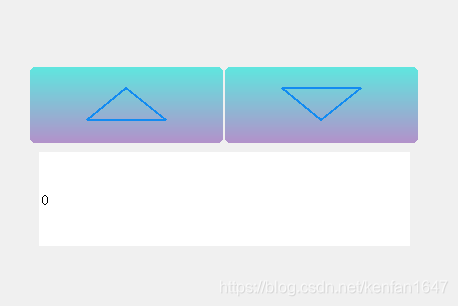

不太好看，我们按设计图给它画上三角形。

void mySpinboxStyle::drawPrimitive(PrimitiveElement which, const QStyleOption *option, QPainter *painter, const QWidget *widget) const{    switch (which)    {        case PE_IndicatorSpinPlus:        {            painter->save();            painter->translate(option->rect.x(),option->rect.y());            QPainterPath drawtriangle;  //画三角形            drawtriangle.moveTo(0, option->rect.height());//左下角            drawtriangle.lineTo(option->rect.width()/2, 0);//第二点坐标为（width/2,width/2）            drawtriangle.lineTo(option->rect.width(), option->rect.height());//右下角，第三坐标（width, height），移动到右下角结束点,整体形成一个闭合路径            drawtriangle.lineTo(0, option->rect.height());            painter->setPen(QPen(QColor("#128bf1"), 2));            painter->drawPath(drawtriangle);  //绘制出图形            painter->restore();        }        break;        case PE_IndicatorSpinMinus:        {            painter->save();            painter->translate(option->rect.x(),option->rect.y());            QPainterPath drawtriangle;  //画三角形            drawtriangle.moveTo(0,0);            drawtriangle.lineTo(option->rect.width()/2,option->rect.height());            drawtriangle.lineTo(option->rect.width(),0);            drawtriangle.lineTo(0,0);            painter->setPen(QPen(QColor("#128bf1"), 2));            painter->drawPath(drawtriangle);  //绘制出图形            painter->restore();        }        break;        default:            QProxyStyle::drawPrimitive(which, option, painter, widget);    }}

这里注意：

painter指针是绘制一开始起从drawComplexControl()函数传过来的，每次绘制前设置painter->save();保存设置绘制完成painter->restore();恢复设置，到drawPrimitive()绘制的原点还是在上下按钮的（0,0）点，设置painter->translate(option->rect.x(),option->rect.y());是将绘制的原点设为绘制图标的原点，就比较方便

下一步是给SC_SpinBoxEditField加上边框：

QRect rect = subControlRect(CC_SpinBox, option,SC_SpinBoxEditField).adjusted(-10, -10, +10, +10);        painter->save();        QLinearGradient gradient(0, 0, rect.width(), rect.height());//x轴使用渐变        gradient.setColorAt(0.0, QColor("#fa709a"));        gradient.setColorAt(1.0, QColor("#fee140"));        painter->setPen(Qt::NoPen);        painter->setBrush(gradient);        QRect roundRect = rect.adjusted(+1, +1, -1, -1);        int diameter = 12;        int cx = 100 * diameter / rect.width();        int cy = 100 * diameter / rect.height();        painter->drawRoundRect(roundRect, cx, cy);//绘制圆角矩形        painter->restore();

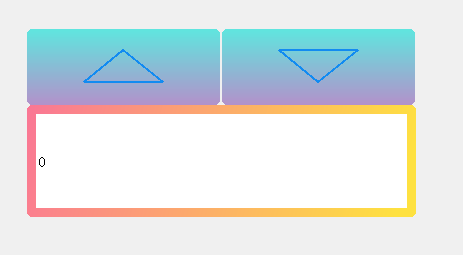

此时的效果：

到这基本完成，然而编辑框里的数字太小了，这里可以设置它的字体并设置文本居中：

ui->spinBox->setAlignment(Qt::AlignCenter);    QFont f;    f.setPixelSize(24);    ui->spinBox->setFont(f);

 最终效果：

样式完整代码：
